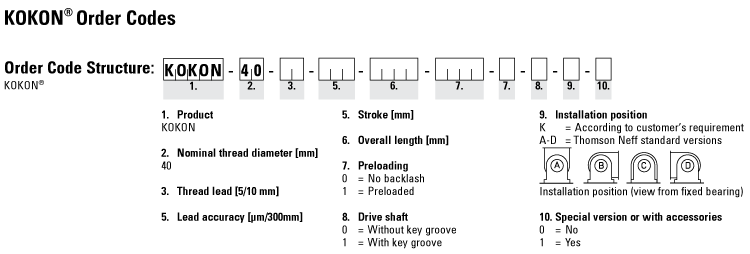

KOKON-4010-050-1268-1708-0-1-A-0, 組件, 40 毫米 X 10 毫米, 無預加載, 50 μm/300mm 導程精度, 1268 毫米 Long, 38 kN 負載，動態

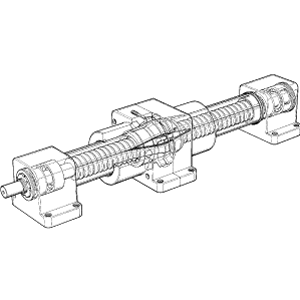

- The KOKON® recirculating ball screw is perfectly suited for harsh, very dirty applications and applications with long travels.

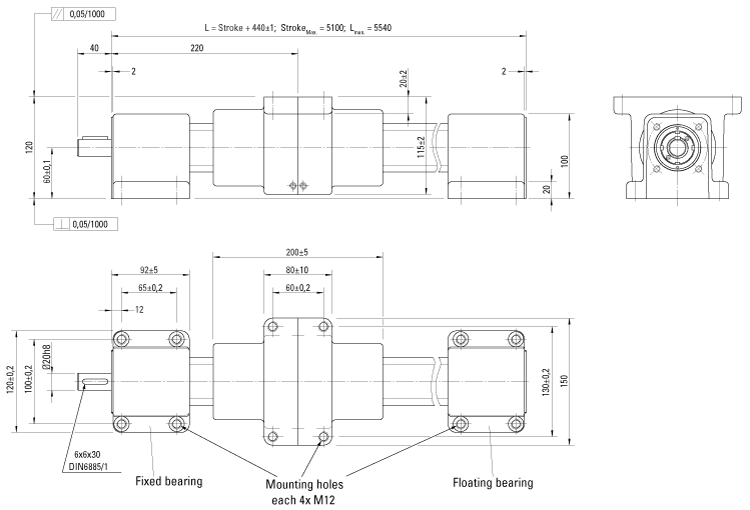

- Complete with shaft, cover and bearings as a ready-to-fit motion system. The central housing with preloaded nut unit and cover band return may be mounted in various orientations.
- Cover in impact resistant elastomeric polymer PA 12.
- Simple maintenance thanks to easy accessibility for relubrication.
| 尺寸 | 價值 |
|---|---|
| Ltot | 1708 毫米 |
| Smax（行程） | 1268 毫米 |
| 標準導程精度 ± | 50 μm/300mm |
| 長度 | 1268 毫米 |
| 絲杠直徑，標稱 | 40 毫米 |
| 軸每轉行程 | 10 毫米 |
