D312338
Can't find what you're looking for? Go to the Product Selector

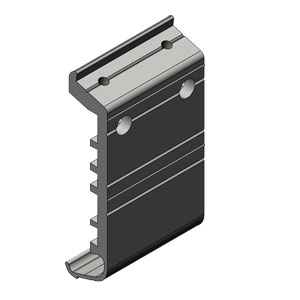

直線運動單元, ADAPTER PLATE, L=40, M100, INDUCTIVE SENSOR
- Adapter plates are fitted in the grooves along the profile and can be used to attach sensors, switches, cable ducts etc. to the unit.

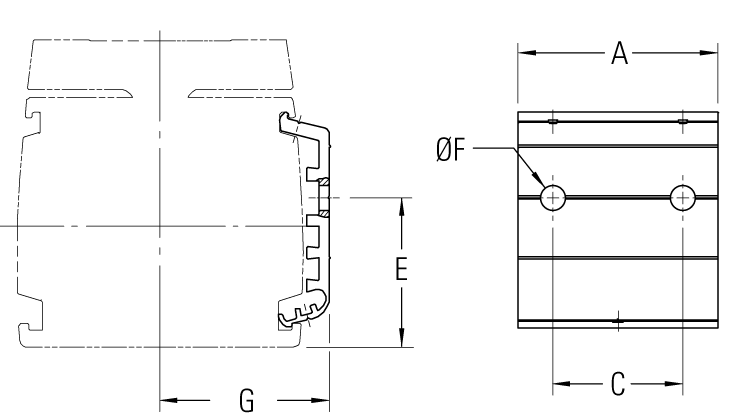

| 尺寸 | 價值 |
|---|---|
| [A] | 40 毫米 |
| [C] | 26 毫米 |
| [E] | 69 毫米 |
| [F] | 6.5 毫米 |
| [G] | 62 毫米 |
