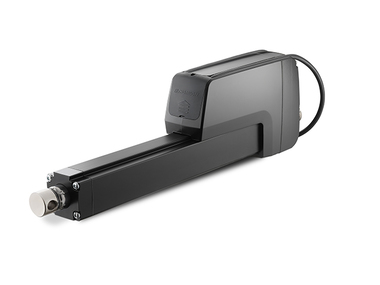

這些智能電動推桿配備板載電子元件，無需單獨的控制系統。具有更高的功率（高達16 kN），開辟了更多液壓轉向電動應用的可能。此外，它們滿足非常嚴格的OEM組件環境驗收測試，包括IP69K。
觀看視頻：ElectrakHD電動推桿 - 強大、智能且堅固。
With position-based synchronization, an option for select Thomson smart linear actuators that helps manage unbalanced loads, the system adjusts the speed of each actuator to keep them starting, moving and stopping synchronously, regardless of their respective load distribution.
The trend of using electric linear actuators in machines using motion control is strong and growing. In addition to the benefits of simplicity, cleanliness, safety, space consciousness and cost saving, newer capabilities in controllability, power, shock load dampening and regen have made electrification a no-brainer for designers.
| 性能規格 | HDxx-B017 | HDxx-B026 | HDxx-B045 | HDxx-B068 | HDxx-B100 | HDxx-B160 |
|---|---|---|---|---|---|---|
| 輸入電壓 (VDC) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
12VDC (tolerance: 9-16) 24VDC (tolerance: 18-32) |
| 最小/最大行程 長度：mm |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 1000 @ 50 ordering increments |
100 / 500 @ 50 ordering increments |
| 最大動態負載： N (lbs) |
1700 (382) | 2600 (585) | 4500 (1012) | 6800 (1529) | 10000 (2248) | 16000 (3597) |
| 最大靜態負載： kN (lbs) |
18 (4050) | 18 (4050) | 18 (4050) | 18 (4050) | 18 (4050) | 18 (4050) |
| 最大空載速度：mm/s（in/s） | 71 (2.8) | 40 (1.6) | 24 (0.94) | 18 (0.71) | 11 (0.43) | 7 (0.28) |
| 最大滿載速度：mm/s（in/s） | 58 (2.28) | 32 (1.3) | 19 (0.75) | 14 (0.55) | 9 (0.35) | 5 (0.20) |
| 電流消耗 @ 空載/最大負載 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 20 @24V - 1.5 / 10 |
@12V - 3 / 18 @24V - 1.5 / 9 |
@12V - 3 / 20 @24V - 1.5 / 10 |
| 滿載占空比 @ 25 ºC (77 ºF) |
25% | 25% | 25% | 25% | 25% | 15% |
| 絲杠/螺母類型 | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut | Ball / load lock ball nut |
| 工作溫度： ºC (ºF) | -40 to +70 (-40 to +158) |
-40 to +70 (-40 to +158) |
-40 to +70 (-40 to +158) |
-40 to +70 (-40 to +158) |
-40 to +70 (-40 to +158) |
-40 to +70 (-40 to +158) |
| 防護等級： 靜態/動態 |
IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 | IP67, IP69K / IP66 |
| 限制扭矩： br /> Nm (lbs) | 0 | 0 | 0 | 0 | 0 | 0 |
| 端隙（最大值）： mm (in) |
1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) | 1.2 (0.047) |
| 耐鹽霧性（小時） | 500 | 500 | 500 | 500 | 500 | 500 |
| 執行器重量 (kg) |
6.5 @ 100 mm 11.0 @ 1000 mm |
6.5 @ 100 mm 12.2 @ 1000 mm |
6.5 @ 100 mm 12.2 @ 1000 mm |
6.5 @ 100 mm 12.2 @ 1000 mm |
6.7 @ 100 mm 12.4 @ 1000 mm |
7 @ 100 mm 9.4 @ 500 mm |
